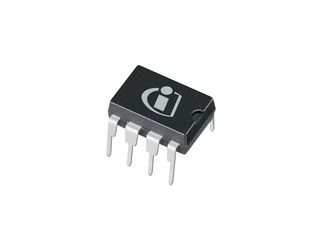

ICE3B0565XKLA1
Current Mode PWM Controller IC for SMPS 650V 8-Pin PDIP Tube
Click image to enlarge
Manufacturer:Infineon
Product Category:
Power Management, Drivers & Controllers, PWM Controllers
Avnet Manufacturer Part #: ICE3B0565XKLA1
Secondary Manufacturer Part#: ICE3B0565XKLA1
-
RoHS 10 Compliant -
Tariff Charges
This product is not for new design anymore please see equivalent product ICE3B0565J
- 650V avalanche rugged CoolMOS™ with built in switchable Startup Cell
- Active Burst Mode for lowest Standby Power@ light load controlled by Feedback signal
- Fast load jump response in Active Burst Mode
- 67 kHz fixed switching frequency
- Auto Restart Mode for Overtemperature Detection
- Auto Restart Mode for Overvoltage Detection
- Auto Restart Mode for Overload and Open Loop
- Auto Restart Mode for VCC Undervoltage
- Blanking Window for short duration high current
- User defined Soft Start
- Minimum of external components required
- Max Duty Cycle 72%
- Overall tolerance of Current Limiting < ±5%
- Internal PWM Leading Edge Blanking
- Soft driving for low EMI
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| No | ||
| 77 % | ||
| 0 % | ||
| 30 ns | ||
| Tin | ||
| 77 % | ||
| Through Hole | ||
| 1 | ||
| 8 | ||
| 1 | ||
| No | ||
| 5.25, 2.7 V | ||
| -25 to 130 °C | ||
| 150 °C | ||
| -25 °C | ||
| 500 mA | ||
| 650 V | ||
| 8DIP | ||
| 8 | ||
| Single Ended Controller | ||
| 9.77(Max) x 6.6(Max) x 4.57(Max) | ||
| No | ||
| PDIP | ||
| 21 V | ||
| 8.5 V | ||
| 71 kHz | ||
| 63 kHz | ||
| 67 kHz | ||
| Flyback | ||
| 30 ns |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | NO RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8542330001 |
| Schedule B: | 8542330000 |
Factory Lead Time:
