ESD217B102ELE6327XTMA1
ESD Protection Device, 29 V, TSLP-2-19, 2 Pins, 14 V, 13 pF

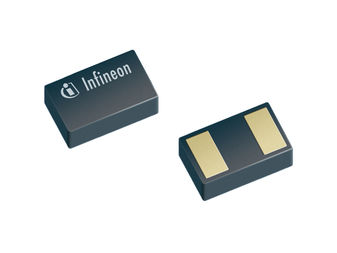

Click image to enlarge
Manufacturer:Infineon
Product Category:
Circuit Protection, ESD Protection Devices
Avnet Manufacturer Part #: ESD217B102ELE6327XTMA1
Secondary Manufacturer Part#: ESD217B102ELE6327XTMA1
-
RoHS 10 Compliant -
Tariff Charges
Low Capacitance Bi-directional ESD / Transient Protection Diode
- ESD / transient protection according to:
- IEC61000-4-2 (ESD): ±30 kV (air), ±25 kV (contact)
- IEC61000-4-4 (EFT): ±3kV / ±60A (5/50 ns)
- IEC61000-4-5 (Surge): ±3 A (8/20 µs)
- Asymmetrical, bi-directional working voltage up to VRWM = +14 V / -8 V
- Low capacitance: CL = 9 pF (typical)
- Low clamping voltage: VCL = 26 V (typical) at ITLP = 16 A
- Very low reverse current: IR < 1 nA (typical)
- Ultra low dynamic resistance: RDYN = 0.2 ? (typical)
- Pb-free (RoHS compliant) and halogen free package
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 8.5 V | ||
| 13 pF | ||
| 29 V | ||
| TSLP-2-19 | ||
| Bidirectional | ||
| Surface Mount | ||
| 1 | ||
| 2 | ||
| 1 | ||
| 125 °C | ||
| -55 °C | ||
| 14 V | ||
| 85 W | ||
| 50 nA | ||
| 14 V |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8541100080 |
| Schedule B: | 8541100080 |
Factory Lead Time:
