ESD103B102ELE6327XTMA1
ESD Protection Device, 48 V, TSLP-2-20, 2 Pins, 0.2 pF, ESD103-B1-02

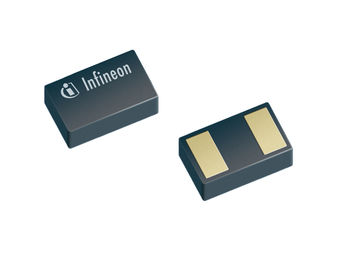

Click image to enlarge
Manufacturer:Infineon
Product Category:
Circuit Protection, ESD Protection Devices
Avnet Manufacturer Part #: ESD103B102ELE6327XTMA1
Secondary Manufacturer Part#: 13AC8612
-
RoHS 10 Compliant -
Tariff Charges
Bi-directional Ultra Low Capacitance ESD / Transient Protection
- ESD/Transient protection of RF and ultra-high speed signal lines according to:
- IEC61000-4-2: ±10 kV (contact)
- Extremely low capacitance CL = 0.09 pF (typical) at f = 1 GHz
- Maximum working voltage: VRWM = ±15 V
- Very low reverse current: IR < 0.1 nA (typ.)
- Very low series inductance down to 0.2 nH typical (TSSLP-2-4)
- Extremely small form factor down to 0.62 x 0.32 x 0.31 mm²
- Pb-free package (RoHS compliant)
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 0.2 pF | ||
| 48 V | ||
| TSLP-2-20 | ||
| Bidirectional | ||
| Surface Mount | ||
| 1 | ||
| 2 | ||
| 1 | ||
| 125 °C | ||
| -55 °C | ||
| 15 V | ||
| ESD103-B1-02 Series | ||
| 50 nA |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8541100080 |
| Schedule B: | 8541100080 |
Factory Lead Time:
