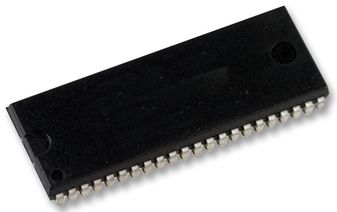

CY62146EV30LL-45ZSXIT
SRAM Chip Async Single 3V 4M-Bit 256K x 16 45ns 44-Pin TSOP-II T/R
CY62146EV30LL-45ZSXIT is a 4-Mbit (256K × 16) high performance CMOS static RAM organized as 256K words by 16 bits. This device features an advanced circuit design designed to provide an ultra low active current. Ultra low active current is ideal for provi
- VCC range from 2.2 to 3.6V, 45ns speed
- Operating ICC range from 3.5mA typ (f=1MHz, VCC=VCC(typ), TA=25°C)
- Standby ISB2 is 2.5µA typ (VCC=VCC(typ), TA=25°C)
- Pin compatible with CY62146DV30
- Typical active current is 3
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 4 Mbit | ||
| 44 | ||
| 85 °C | ||
| -40 °C | ||
| 3.6 V | ||
| 2.2 V | ||
| 3 V |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | NO RECOVERY FEE |
| ECCN: | 3A991.B.2.A |
| HTSN: | 8542320041 |
| Schedule B: | 8542320040 |
