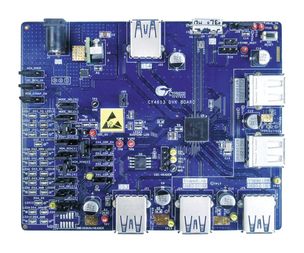

CY4613
Development Board, CYUSB3328, USB Hub Controller, 12V/3A Adaptor, 5x Jumpers
Click image to enlarge
Manufacturer:Infineon
Product Category:
Kits & Tools, Evaluation & Development Kits
Avnet Manufacturer Part #: CY4613
Secondary Manufacturer Part#: CY4613
-
RoHS 10 Compliant -
Tariff Charges
CY4613 is a HX3 USB 3.0 shared link development kit. This development kit to evaluate and develop solutions with CYUSB332x family of HX3 USB 3.0 hub controllers. The kit demonstrates HX3’s Shared Link feature in a 6 port configuration and also supports ACA-Dock functionality. This kit comes integrated with the required components and the Blaster Plus software utility. Blaster Plus is a GUI based Infineon software tool to change the configuration parameters of HX3.
- Supports shared link
- Supports ACA-Dock
- Supports battery charging v1.2
- Supports ghost charging
- Configure HX3 using I2C EEPROM or I2C server mode
- Supports individual downstream port power control
- 88-pin QFN package
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Communication Tools | ||
| 4.5 x 3.6 | ||
| Communication Tools |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | UNKNOWN |
| ECCN: | 3A991.A.2 |
| HTSN: | 8471500150 |
| Schedule B: | 8471500150 |
Factory Lead Time:
