BTS730XUMA1

Name: BTS730XUMA1
Brand: Infineon
SKU: BTS730XUMA1
Availability: InStock

Power Switch Hi Side 20-Pin DSO T/R

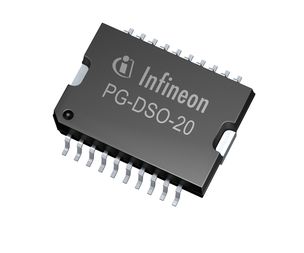

Click image to enlarge

Manufacturer:Infineon

Product Category: Power Management, Power Load Distribution Switches

Avnet Manufacturer Part #: BTS730XUMA1

Secondary Manufacturer Part#: BTS730XUMA1

RoHS 10 Compliant
Tariff Charges

Description

The BTS730 is a one channel high-side power switch in PG-DSO-20 power package providing embedded protection functions. The device is monolithically integrated in Smart SIPMOS technology. The power transistor is built by N-channel-planar power MOSFET. The inputs are ground referenced CMOS compatible.

Low standby current

Automatic run generation

Improved electromagnetic compatibility (EMC)

Stable behaviour at undervoltage

Short-circuit protection

Overload protection

Load Dump protection

Overtemperature protection

Loss of ground protection

Reverse battery protection

Electrostatic discharge protection (ESD)

Technical Attributes

Find Similar Parts

	Description	Value

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	NO RECOVERY FEE
ECCN:	EAR99
HTSN:	8542390050
Schedule B:	8542390060

In Stock : 0

Additional inventory

Factory Lead Time: 777 Weeks

Price for: Each

Quantity:

Min:1000 Mult:1000

USD $:
