BTS50901EJAXUMA1
Power Load Switch, Smart6 Technology, High Side, 1 Output, 28V, 15A, SOIC-8

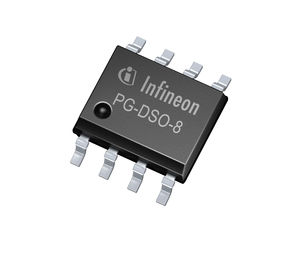

Click image to enlarge
Manufacturer:Infineon
Product Category:
Power Management, Power Load Distribution Switches
Avnet Manufacturer Part #: BTS50901EJAXUMA1
Secondary Manufacturer Part#: 50Y1859
-
RoHS 10 Compliant -
Tariff Charges
The BTS5090-1EJA is a 90 mO single channel Smart High-Side Power Switch, embedded in a PG-DSO-8-43 EP, Exposed Pad package, providing protective functions and diagnosis. The power transistor is built by an N-channel vertical power MOSFET with charge pump. The device is integrated in Smart6 technology. It is specially designed< to drive lamps up to 1 * P21W, as well as LEDs in the harsh automotive environment.
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 3 A | ||
| 6 V | ||
| 3 A | ||
| Surface Mount | ||
| 1 | ||
| 8 | ||
| Active High, Active Low, Activ | ||
| 90 mOhm | ||
| 150 °C | ||
| -40 °C | ||
| 8DSO EP | ||
| 8 | ||
| 4.9 x 3.9 x 1.45 mm | ||
| DSO EP | ||
| High Side |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8542390050 |
| Schedule B: | 8542390060 |
Factory Lead Time:
