BTS50161EKBXUMA1
Smart Power Load Switch, High Side, Active High, AEC-Q100, 1 Output, 28V, 8A, 32 mohm, SOIC-14

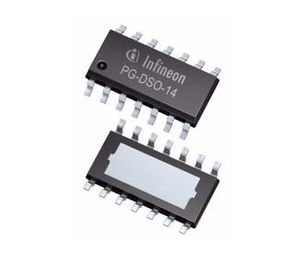

Click image to enlarge
Manufacturer:Infineon
Product Category:
Power Management, Power Load Distribution Switches
Avnet Manufacturer Part #: BTS50161EKBXUMA1
Secondary Manufacturer Part#: BTS50161EKBXUMA1
-
RoHS 10 Compliant -
Tariff Charges
The BTS5016-1EKB is a 16 mO single channel Smart High-Side Power Switch, embedded in a PG-DSO-14- 47 EP, Exposed Pad package, providing protective functions and diagnosis. The power transistor is built by an N-channel vertical power MOSFET with charge pump. The device is integrated in Smart6 technology. It is specially designed to drive lamps up to H1 / H4 / H7 / H9, as well as LEDs in the harsh automotive environment.
- One channel device
- Very low stand-by current
- 3.3 V and 5 V compatible logic inputs
- Electrostatic discharge protection (ESD)
- Optimized electromagnetic compatibility
- Logic ground independent from load ground
- Very low power DMOS leakage current in OFF state
- Green product (RoHS compliant)
- AEC qualified
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 37 A | ||
| 18 V | ||
| Tin | ||
| 8 A | ||
| Surface Mount | ||
| MSL 3 - 168 hours | ||
| 1 | ||
| 14 | ||
| 1 | ||
| Active High, Activ | ||
| 16 mOhm | ||
| -40 to 150 °C | ||
| 150 °C | ||
| -40 °C | ||
| 14DSO EP | ||
| 14 | ||
| 8.65 x 3.9 x 1.47 | ||
| DSO EP | ||
| 5 mA | ||
| 0.016 Ohm | ||
| High Side |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8542390050 |
| Schedule B: | 8542390060 |
Factory Lead Time:
