BTS441RGATMA1
Smart Power Switch, SIPMOS Technology, High Side, 1 Output, 43V, 65A, TO-263-5

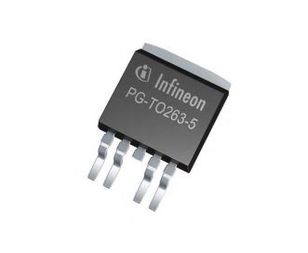

Click image to enlarge
Manufacturer:Infineon
Product Category:
Power Management, Power Load Distribution Switches
Avnet Manufacturer Part #: BTS441RGATMA1
Secondary Manufacturer Part#: BTS441RGATMA1
-
RoHS 10 Compliant -
Tariff Charges
The BTS441RG is a high side Power Switch N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS? technology. Fully protected by embedded protection functions.
- Fits for 12 and 24V application
- Overload protection
- Current limitation
- Short-circuit protection
- Thermal shutdown
- Overvoltage protection (including load dump)
- Fast demagnetization of inductive loads
- Reverse battery protection with external resistor
- Open drain diagnostic output for over temperature and short-circuit
- Open load detection in OFF-state with external resistor
- CMOS compatible input
- Loss of ground and loss of Vbb protection
- Very low standby current
- Green product
- AEC qualified
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 21 A | ||
| -10 to 16 V | ||
| Tin | ||
| 245 | ||
| 17 A | ||
| Surface Mount | ||
| MSL 1 - Unlimited | ||
| 1 | ||
| 5 | ||
| 1 | ||
| 20 mOhm | ||
| 4.75 to 43 V | ||
| -40 to 150 °C | ||
| 150 °C | ||
| -40 °C | ||
| 5TO-263 | ||
| 5 | ||
| 10.25 x 9.25 x 4.4 | ||
| TO-263 | ||
| 2 mA | ||
| 0.015 Ohm | ||
| High Side |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8542390050 |
| Schedule B: | 8542390060 |
Ships
in 1 bus. day
