BTS426L1E3062ABUMA1

Name: BTS426L1E3062ABUMA1
Brand: Infineon
SKU: BTS426L1E3062ABUMA1
Availability: InStock

Power Switch Hi Side 5.8A 5-Pin TO-263 T/R

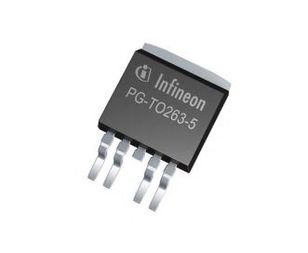

Click image to enlarge

Manufacturer:Infineon

Product Category: Power Management, Power Load Distribution Switches

Avnet Manufacturer Part #: BTS426L1E3062ABUMA1

Secondary Manufacturer Part#: BTS426L1E3062ABUMA1

High side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.

Overload protection

Current limitation

Short circuit protection

Thermal shutdown

Overvoltage protection (including load dump)

Fast demagnetization of inductive loads

Reverse battery protection 1 )

Undervoltage and overvoltage shutdown with auto-restart and hysteresis

Open drain diagnostic output

Open load detection in ON-state

CMOS compatible input

Loss of ground and loss of Vbb protection

Electro static discharge (ESD) protection

Green Product (RoHS compliant)

AEC Qualified

Find Similar Parts

	Description	Value
	Current Limit	7 A
	Input Voltage	16 V
	Minimum Output Current	5.8 A
	Mounting	Surface Mount
	No. of Channels	1
	No. of Pins	5
	Number of Outputs	1
	On State Resistance	60 mOhm
	Operating Supply Voltage Range	5 to 34 V
	Operating Temperature	-40 to 150 °C
	Operating Temperature Max	150 °C
	Operating Temperature Min	-40 °C
	Package	5TO-263
	Pin Count	5
	Product Dimensions	10 x 9.25 x 4.4
	Supplier Package	TO-263
	Supply Current	2 mA
	Switch On Resistance	0.05 Ohm
	Type	High Side

In Stock : 0

Additional inventory

Factory Lead Time: 777 Weeks

Price for: Each

Quantity:

Min:1000 Mult:1000

USD $:
