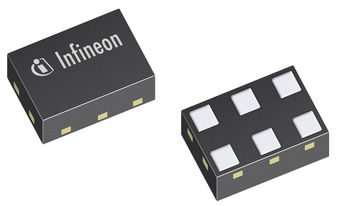

BGA231N7E6330XTSA1

GNSS Low-Noise Amplifier (LNA), 1.55 GHz to 1.615 GHz, 7 Pins, TSNP

Manufacturer:Infineon
Product Category: ICs, RF ICs, RF Amplifiers
Avnet Manufacturer Part #: BGA231N7E6330XTSA1
Secondary Manufacturer Part#: SP001067512
  • Legend Information Icon RoHS 10 Compliant
  • Legend Information Icon Tariff Charges

The BGA231N7 is a front-end low noise amplifier for Global Navigation Satellite Systems (GNSS) from 1550 MHz to 1615 MHz like GPS, Galileo, GLONASS and COMPASS. The LNA provides 16.0 dB gain and 0.75 dB noise figure at a current consumption of 4.4 mA in the application configuration.The BGA231N7 is based upon Infineon Technologies‘ B7HF Silicon Germanium technology.It operates from 1.5 V to 3.6 V supply voltage.

  • Insertion power gain: 16.0 dB
  • High out of band input 3rd-order intercept point at input: +5 dBm
  • High input 1 dB compression point: -5 dBm
  • Low noise figure: 0.75 dB
  • Low current consumption: 4.4 mA
  • Operating frequencies: 1550 - 1615 MHz
  • Supply voltage: 1.5 V to 3.6 V
  • Digital on/off switch (1V logic high level)
  • Tiny TSNP-7-1 / TSNP-7-2 leadless package
  • B7HF Silicon Germanium technology
  • RF output internally matched to 50 O
  • Only 3 external SMD components necessary
  • 2 kV HBM ESD protection (including AI-pin)
  • Pb-free (RoHS compliant) package

Technical Attributes

Find Similar Parts

Description Value
null
1 Channel
-40 °C
1.5 V
3.6 V
null
16 dB
null
1.55 GHz
1.615 GHz
null
85 °C

ECCN / UNSPSC / COO

Description Value
Country of Origin: NO RECOVERY FEE
ECCN: EAR99
HTSN: 8542330001
Schedule B: 8542330000
In Stock :  0
Additional inventory
Factory Lead Time: 111 Weeks
Price for: Each
Quantity:
Min:6000  Mult:6000
