BAT5402VH6327XTSA1

Name: BAT5402VH6327XTSA1
Brand: Infineon
SKU: BAT5402VH6327XTSA1
Availability: InStock

Diode Schottky 30V 0.2A 2-Pin SC79 T/R

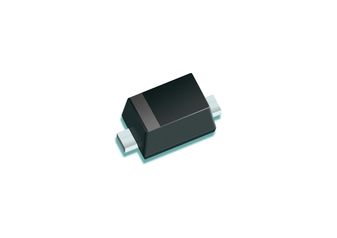

Click image to enlarge

Manufacturer:Infineon

Product Category: Discretes, Diodes & Rectifiers, Small Signal Schottky Diodes

Avnet Manufacturer Part #: BAT5402VH6327XTSA1

Secondary Manufacturer Part#: 13AC8216

RoHS 10 Compliant
Tariff Charges

Description

Silicon Schottky Diode

Technical Attributes

Find Similar Parts

	Description	Value
	Average Forward Current	200
	Diode Case Style	SC-79
	Diode Configuration	Single
	Diode Mounting	Surface Mount
	Forward Surge Current	600
	Forward Voltage Max	800
	Operating Temperature Max	150 °C
	Qualification	AEC-Q101
	Repetitive Peak Reverse Voltage	30

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	RECOVERY FEE
ECCN:	EAR99
HTSN:	8541100060
Schedule B:	8541100060

In Stock : 0

Additional inventory

Factory Lead Time: 133 Weeks

Price for: Each

Quantity:

Min:1 Mult:1

USD $:

$0.175

10+

$0.121

25+

$0.115

50+

$0.108

100+

$0.102

250+

$0.098

500+

$0.09
