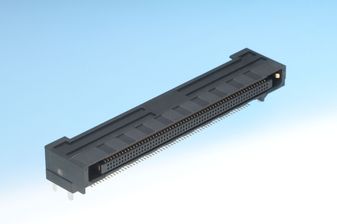

FX18-40S-0.8SH(11)
Conn Board to Board RCP 40 POS 0.8mm Solder RA SMD T/R
Click image to enlarge
Manufacturer:Hirose Electric
Product Category:
Connectors, PC Board Connectors, Stacking Board Connectors
Avnet Manufacturer Part #: FX18-40S-0.8SH(11)
Secondary Manufacturer Part#: FX18-40S-0.8SH(11)
-
RoHS 10 Compliant -
Tariff Charges
- 0.8mm Pitch
- Variations: Coplanar/Vertical/Stacking
- Numberof Contacts: 40/60/80/100 /120/ 140
- Multi functional contact (MF contact) as;
- ground contact to enhance grounding.
- power supply contacts up to 12 A to reduce required pin counts.
- 3-step sequential contacts for grounding and detection
- Effective mating length of signal contact: 2.0 mm.(MF contact A: 2.5mm/MF contact B: 1.5mm)
- Pin through hole mounting MF contacts increase strength against wrenching. Large mating guide for easy mating
- Insertion Loss-to-Crosstalk-Ratio(ICR)The insertion loss-to-crosstalk ratio(ICR)with five-aggressor differential FEXT meets the extrapolated IEEE802.3ap specification for10+Gbps with plenty of margins
- Differential Impedance The differential impedance is within 100±10ohms at 35 ps rise time( 20% to80%)
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Polyamide | ||
| Right Angle | ||
| Phosphor Bronze | ||
| Gold | ||
| Receptacle | ||
| Black | ||
| Gold | ||
| 90 MOhm | ||
| Surface Mount | ||
| 2 | ||
| -55 to 80 °C | ||
| 0.8000 mm | ||
| 11.9 mm | ||
| 27.9 x 11.9 x 9.5 | ||
| 9.5 mm | ||
| 27.9 mm | ||
| Solder |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
