FH34SRJ-6S-0.5SH(50)
Conn FFC/FPC Connector SKT 6 POS 0.5mm Solder RA SMD T/R

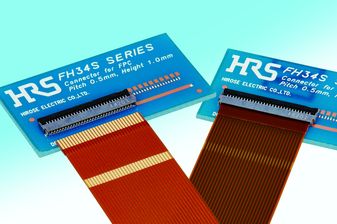

Click image to enlarge
Manufacturer:Hirose Electric
Product Category:
Connectors, PC Board, FFC / FPC Connectors
Avnet Manufacturer Part #: FH34SRJ-6S-0.5SH(50)
Secondary Manufacturer Part#: FH34SRJ-6S-0.5SH(50)
-
RoHS 10 Compliant -
Tariff Charges
- Low-profile
- With the 1.0 mm above the board and width of 3.8 mm the connectors are used in space saving applications
- Increased FPC/FFC retention
- As compared with existing similar construction connectors
- In horizontal direction
- Approximately 2.6 times
- In vertical direction
- Approximately 2 times
- Unique Back-Flip rotating actuator
- The rotating actuator opens from the back of the connector,assuring reliable electrical and mechanical connection
- Easy FPC/ FFC insertion
- Entry chamfers at all sides of the FPC/FFC insertion slot assure correct insertion and positioning of the FPC/FFC
- Delivered with the actuatoropen
- FPC/FPC can be immediately inserted without the need for the opening of the actuator
- Standard FPC/FFC thickness
- Reliable connection with the use of ready available 0.3 mm thick FFC/FPC
- Compatible
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Right Angle | ||
| Phosphor Bronze | ||
| Gold | ||
| Solder | ||
| 6 POS | ||
| 1 | ||
| 0.5 mm |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
Ships
in 1 bus. day
