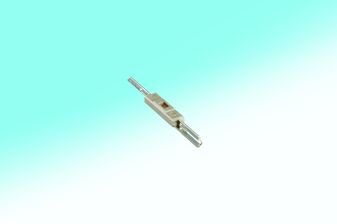

DF59SN-1P-FC(21)

2mm Pitch, Multi functional Connector System. (Floating [Board-to-Board], Swing-Lock [Wire-to-Board], Short Pin)

1. Floating Structure (Board-to-Board) The Board-to-Board connector can be used to connect multiple boards together in a co-planar arrangement and features a “Stress free contact” that floats ± 0.5mm in the X, Y and Z dimensions. 2. Swing Lock Structure (Wire-to-Board) The DF59 features a “swing-lock” mechanism that employs both a positive and friction lock. This helps to prevent the cable assembly from unmating by severe wiring and mechanical stress. 3. Short-Circuit Pin Connector The Short-Circuit Pin connector allows the termination of an open circuit. Typically used at the end of a series of connected circuit boards. 4. Multi Function Design The DF59 has the ability to function as either a Board-to-Wire or Board-to-Board System. The PCB mounted receptacle is designed to mate with the B-to-W, B-to-B, and Short Circuit Pin connectors. This multi function ability allows versatility while keeping connectors to a minimum. 5. Performance and Space Savings The DF59 series offers
