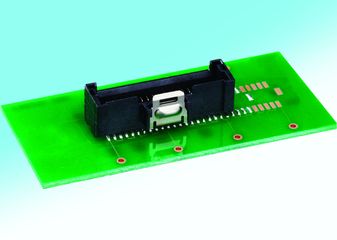

DF50-40DP-1V(52)

1mm Pitch, Board to Wire Lock Connector

It provides clear tactile click and secure mating Locking function and contact mating occur simultaneously, for a clearer tactile click.(Fig.1) 2. Robust structure resistant to wrenching forces Thick and robust housing wall provides higher strength against cracking. Insertion depth for mating housings protects against wrenching.(Fig.2) 3. Robust and reliable lance structure High lance strength by mating with crimp contact on the surface.(Fig.3) 4. Ensured adsorption area eliminates the need for adsorption cap. Adequate adsorption area is ensured despite the small size, allowing for automatic mounting without adsorption cap. (*Specifications for adsorption cap may be provided according to your requirements) 5. Insulation outer diameter Ø0.9mm, compatible with AWG#28 Despite 1 mm Pitch, it is compatible with Ø0.9mm, UL1061·AWG#28 Cable (Ø0.127×7)
