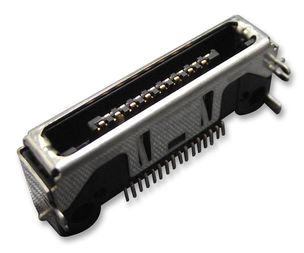

3560-16S(70)

Name: 3560-16S(70)
Brand: Hirose Electric
SKU: 3560-16S(70)
Availability: InStock

Connector Interface I/O Receptacle 16 Position 0.8mm Solder Right Angle Surface Mount

Click image to enlarge

Manufacturer:Hirose Electric

Product Category: Connectors, I/O Connectors, Other I/O Connectors

Avnet Manufacturer Part #: 3560-16S(70)

Secondary Manufacturer Part#: 3560-16S(70)

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	RECOVERY FEE
ECCN:	EAR99
HTSN:	8536694040
Schedule B:	8536694030

In Stock : 0

Additional inventory

Factory Lead Time: 84 Weeks

Price for: Each

Quantity:

Min:1 Mult:1

USD $:

$4.4847

10+

$4.46205

30+

$3.8024

50+

$3.783

100+

$3.7636
