61C22-01-04-02
Optical Encoder
Click image to enlarge
Manufacturer:Grayhill
Product Category:
Sensors & Transducers, Motion & Position Sensors, Rotary Encoders
Avnet Manufacturer Part #: 61C22-01-04-02
Secondary Manufacturer Part#: 50F7510
-
RoHS 10 Compliant -
Tariff Charges

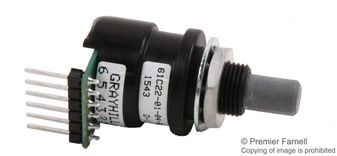

The 61C22-01-04-02 is a standard Optical Encoder with tin-plated phosphor bronze board terminals and data entry pushbutton switch activated by switch shaft. The quadrature coding optical encoder has reinforced thermoplastic shaft and bushing. Optically coupled for more than a million trouble-free rotations. Compatible with CMOS, TTL and HCMOS logic. Operationally used to move display icon and input data. Used to set radio frequency, drill depth and RPM.
- 22.25° or 16 positions Angle of throw
- -40 to 85°C Operating temperature range
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Quadrature | ||
| 16 | ||
| Optical | ||
| Incremental | ||
| 2 | ||
| 16 | ||
| 85 °C | ||
| -40 °C | ||
| Vertical | ||
| 61C | ||
| With Push Switch | ||
| 1000000 | ||
| Panel Mount | ||
| 6.35 mm | ||
| 9.53 mm | ||
| D Type Flatted End | ||
| 5.25 V | ||
| 4.75 V | ||
| Solder Pin |
