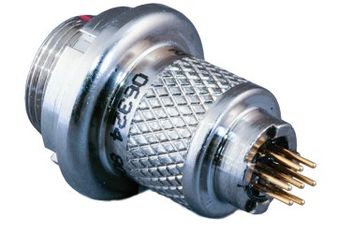

804-005-00M7-10S
Circular Connector, Mighty Mouse 804 Series, Jam Nut Receptacle, 10 Contacts, PCB Socket, Push-Pull
Click image to enlarge
Manufacturer:Glenair
Product Category:
Connectors, Circular, MIL Spec Equivalent Circular Connectors
Avnet Manufacturer Part #: 804-005-00M7-10S
Secondary Manufacturer Part#: 804-005-00M7-10S
-
RoHS 10 Compliant -
Tariff Charges
- Jam-nut, front panel mount shell style
- 10 contacts, PCB socket contact type
- Aluminum alloy connector body and electroless nickel connector body plating
- Copper alloy contact material and gold contact plating
- Quick-disconnect with canted spring coupling
- Very good EMI shielding, 37g's random vibration 300g's shock
- Mating cycles : 2000 cycle
- Breakaway connector for headsets and tactical equipment
- Gold-plated spring for long mating life and superior EMI shielding
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Straight | ||
| Socket | ||
| Copper Alloy | ||
| Gold | ||
| 10Signal | ||
| Receptacle | ||
| 7-10 | ||
| Gold | ||
| Jam Nut | ||
| -55 to 150 °C | ||
| 25.27 mm | ||
| 27.06 mm | ||
| 27.06 mm | ||
| No | ||
| Solder |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | NO RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536308000 |
| Schedule B: | 8536300000 |
Factory Lead Time:
