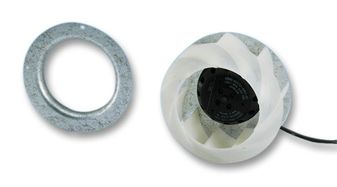

R2S133-AE17-05
AC Motorized Impeller Ball Bearing 230V 0.25A/0.21A 36W/34W 50Hz/60Hz 2780RPM/3200RPM 164.8CFM/188.34CFM 55dB/58dB Flange Mount
Click image to enlarge
Manufacturer:ebm-papst
Product Category:
Thermal Management, Fans & Blowers, Blowers / Centrifugal Fans
Avnet Manufacturer Part #: R2S133-AE17-05
Secondary Manufacturer Part#: R2S133-AE17-05
-
RoHS 10 Compliant -
Tariff Charges
- Backward curved centrifugal fans feature extremely long blades. These impellers are highly resistant to dirt and dust. Their hydraulic efficiency is very high
- Impeller completely made of plastic PA 6
- Maintenance-free ball bearings
- Insulation class B". Cable exit: variable. Direction of rotation is CW as seen from intake side
- UL, CSA, VDE approvals on most models
- Sound Pressure Level: 58 dBA
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 164.8|188.34 | ||
| 4.66658666666667|5.333161 | ||
| Ball | ||
| Leads | ||
| 36, 34 W |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8414596595 |
| Schedule B: | 8414599080 |
Factory Lead Time:
