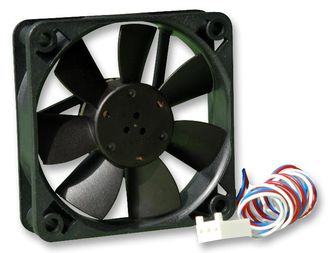

612F/2L-640
DC Axial Fan, 12 V, Square, 60 mm, 15 mm, Sleeve Bearing, 8.8 CFM
Click image to enlarge
Manufacturer:ebm-papst
Product Category:
Thermal Management, Fans & Blowers, DC Axial Fans
Avnet Manufacturer Part #: 612F/2L-640
Secondary Manufacturer Part#: 612F/2L-640
-
RoHS 10 Compliant -
Tariff Charges
- With electronic protection against reverse polarity. The fan only operates when the polarity is correct. Impedance-protected against locked rotor and overloading.
- Fan of fibreglass reinforced plastic. PBT housing, PA impeller
- Air exhaust over struts. Rotational direction CCW looking at rotor
- Nominal speed RPM: 2250
- Fitted with 3 pin molex connector (22-01-2035)
- Sensor signal for speed monitoring
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 8.8 CFM | ||
| 0.25 | ||
| Sleeve Bearing | ||
| 15 mm | ||
| 60 mm | ||
| Square | ||
| 11 dBA | ||
| 3 Lead Wires with Connector, Tachometer | ||
| 280 mW | ||
| 2250 RPM | ||
| 9 Pa | ||
| 12 V |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8414596595 |
| Schedule B: | 8414599080 |
Factory Lead Time:
