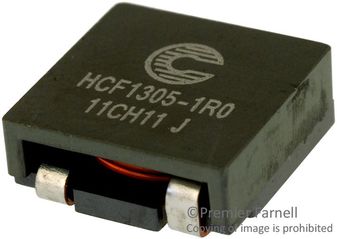

HCF1305-1R0-R

Name: HCF1305-1R0-R
Brand: Eaton
SKU: HCF1305-1R0-R
Availability: InStock

Click image to enlarge

Manufacturer:Eaton

Product Category: Inductors, Power Inductors, SMD Power Inductors

Avnet Manufacturer Part #: HCF1305-1R0-R

Secondary Manufacturer Part#: HCF1305-1R0-R

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	DC Resistance Max	1.58 mOhm
	Inductance	1 uH
	Inductance Tolerance	20
	Inductor Case / Package	5050
	Inductor Construction	Unshielded
	Product Height	5 mm
	Product Length	12.5 mm
	Product Range	HCF1305 Series
	Product Width	12.5 mm
	RMS Current (Irms)	22 A
	Saturation Current (Isat)	24 A

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	RECOVERY FEE
ECCN:	EAR99
HTSN:	8504508000
Schedule B:	8504500000

In Stock : 0

Additional inventory

Factory Lead Time: 84 Weeks

Price for: Each

Quantity:

Min:600 Mult:600

USD $:

600+

$2.57143

1200+

$2.43243

2400+

$2.36842

3600+

$2.30769

4800+

$2.25
