SBR12U120P5-13

Name: SBR12U120P5-13
Brand: Diodes Incorporated
SKU: SBR12U120P5-13
Availability: InStock

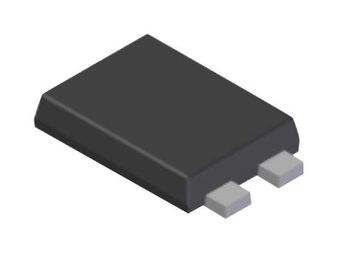

Click image to enlarge

Manufacturer:Diodes Incorporated

Product Category: Discretes, Diodes & Rectifiers, Standard Recovery Rectifiers

Avnet Manufacturer Part #: SBR12U120P5-13

Secondary Manufacturer Part#: SBR12U120P5-13

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	Average Forward Current	12
	Diode Case Style	PowerDI5
	Diode Configuration	Single Dual Anode
	Diode Mounting	Surface Mount
	Forward Surge Current	250
	Forward Voltage Max	800
	No. of Pins	3
	Operating Temperature Max	150 °C
	Repetitive Peak Reverse Voltage	120

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	RECOVERY FEE
ECCN:	EAR99
HTSN:	8541100080
Schedule B:	8541100080

In Stock : 0

Additional inventory

Factory Lead Time: 84 Weeks

Price for: Each

Quantity:

Min:5000 Mult:5000

USD $:

5000+

$0.35714

10000+

$0.33784

20000+

$0.3333

40000+

$0.3316

80000+

$0.3299
