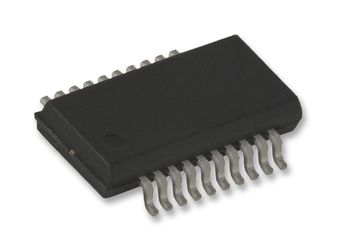

PI49FCT3807CQE
Clock Driver, 100 MHz, 2.97 V to 3.63 V, 10 Outputs, -40 °C to 85 °C, QSOP-20
Click image to enlarge
Manufacturer:Diodes Incorporated
Product Category:
Clock & Timing, Clock Buffers
Avnet Manufacturer Part #: PI49FCT3807CQE
Secondary Manufacturer Part#: PI49FCT3807CQE
-
RoHS 10 Compliant -
Tariff Charges
Pericom Semiconductor’s PI49FCT3807 is a 3.3V 1-to-10 clock driver. This low skew clock driver features one input and ten outputs fanout. The large fanout from a single input line reduced loading on input clock. TTL level outputs reduce noise levels on the part. Typical applications are clock and signal distributon.
- 3.3V version of PI49FCT807
- Ultra low skew: 0.35ns
- Low Input Capacitance
- Minimum duty cycle distortion
- 1:10 fanout
- High speed: 3.5ns propogation
- TTL input and CMOS output compatible
- VOH =3.3V (typical)
- VOL =0.3V (typical)
- Industrial Temperature: –40°C to +85°C
- 3.3V ±10% operation
- Packaging (Pb-free & Green Available):
- 20-pin 300-mil wide SOIC (S)
- 20-pin 150-mil wide QSOP (Q)
- 20-pin 209-mil wide SSOP (H)
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Clock Driver, Fanout Buffer | ||
| TTL | ||
| 1 | ||
| 10 | ||
| 20 | ||
| 85 °C | ||
| -40 °C | ||
| CMOS | ||
| PI49FCT3807 Series | ||
| AEC-Q100 | ||
| 3.6 Vdc | ||
| 3 Vdc |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8542390090 |
| Schedule B: | 8542390060 |
Factory Lead Time:
