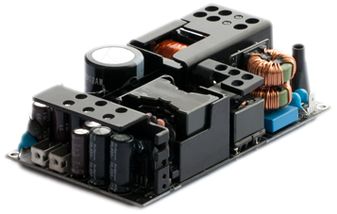

MDS-300APB12AA
AC/DC Open Frame Power Supply, ITE & Medical, Fixed, 1 Output, 220 W, 12 VDC, 18.33 A
-
RoHS 10 Compliant -
Tariff Charges
MDS-300APB12 AA is an open frame power supply offers a high energy density (14.3 Watts/in3) 3x5 inch design for Type BF patient access medical products. With operating parameters of 90 to 264 VAC universal input voltage, temperatures of -10 to +70 degrees centigrade, and altitudes of up to 5000 meters (16,400 feet), the design is well suited for a variety of both medical and non-medical applications. Other features include input surge of 300 Vac, low leakage current, no-load input power 0.5 Watt, and 500K hour MTBF. This product is certified for EMC standards EN/BS EN 55011 for industrial, scientific and medical (ISM) radio-frequency equipment, and EN/BS EN 55032 for Industrial Technology Equipment (ITE) radio-frequency equipment.
- Output voltage is 12VDC
- 5V/0.5V standby output
- Remote on/off
- Remote sense, and a power good signal
- Protection against shock compliant with 2XMOPP and Type BF requirements
- Comes in a standard 3x5 inch footprint, with height suitable for 1U applications
- Safety Approvals to IEC 60601-1 3.1rd ed. & IEC 62368-1
- Compliant with IEC 60601-1-2 4th Ed. Requirements
- 3" x 5"" x 1.4"" package
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 90V AC to 264V AC | ||
| 4000 Vac | ||
| 1 | ||
| -10 to 70 °C | ||
| 18.33 A | ||
| 18.33 A | ||
| 12 V | ||
| 12 Vdc | ||
| 220 W | ||
| 300W @ 10CFM | ||
| ITE & Medical | ||
| Fixed |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8504409580 |
| Schedule B: | 8504409585 |
Factory Lead Time:
