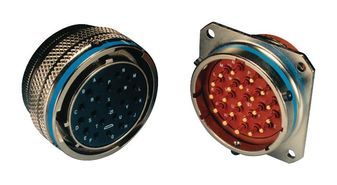

MS27499E20B16P

The MS27499E20B16P from Amphenol is MIL-DTL-38999 Series II box mount receptacle with 16 contacts. MIL-DTL-38999 Series II connectors are available in a wide range of shell materials and finishes with 48, 500 and 1000 hour salt spray plating exposure. These connectors offer high density contact arrangements in a miniature circular shell and combines high coupling durability. It has an improved sealing around each contact to prevent electrolytic erosion. These connectors are available in 9 shell size from 8 to 24 and are designed to withstand extreme shock, exposure and vibration.

• High reliability, moisture and corrosion resistant
• Outstanding EMI, RFI shielding protection (100MHz to 10GHz at attenuation of 45dB)
• 500 mating cycles, IP67 environmental protection
• Operates at extreme temperature range of -65°C to +200°C
• Minimum insulation resistance is 5000Mohm
• Non scoop proof, low profile shell and light-weight
• Quick mating, three-point bayonet coupling and 5 key/keyway mating
• Self locking connector system, breakaway lanyard release style
• Aluminium alloy body material with olive drab chromate over cadmium plating
• Copper alloy crimp pin contacts with gold plating
