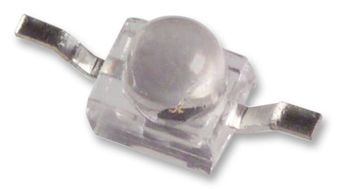

HLMP-Q150

The HLMP-Q150 Series dome lamps for use as indicators use an untinted, nondiffused lens to provide a high luminous intensity within a narrow radiation pattern. All of these devices are made by encapsulating LED chips on axial lead frames to form molded epoxy subminiature lamp packages. A variety of package configuration options is available. These include special surface mount lead configurations, gull wing, yoke lead or Z-bend. Right angle lead bends at 2.54 mm (0.100 inch) and 5.08 mm (0.200 inch) center spacing are available for through hole mounting.

• Subminiature flat top package
  • ideal for backlighting and light piping applications
• Subminiature dome package
  • diffused dome for wide viewing angle
  • nondiffused dome for high brightness
• TTL and LSTTL compatible 5 volt resistor lamps
• Color: AlGaAs Red
• Ideal for space limited applications
• Axial leads
• Available with lead configurations for surface mount and through hole PC board mounting
