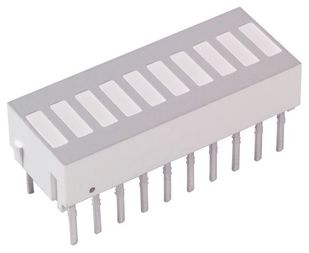

HLCP-J100
LED Bar Graph Array, Red, 20 mA, 1.8 V, 5.2 mcd, 10 LEDs, 25.4mm x 10.16mm
Click image to enlarge
Manufacturer:Broadcom
Product Category:
Optoelectronics, LEDs & Lighting, LEDs
Avnet Manufacturer Part #: HLCP-J100
Secondary Manufacturer Part#: HLCP-J100
-
RoHS 10 Compliant -
Tariff Charges
The HLCP-J100 is a 10-element AlGaAs red LED Bar Graph Array designed to display information in easily recognizable bar graph form. The package is end stackable and therefore capable of displaying long strings of information. Use of this bar graph array eliminates the alignment, intensity and colour matching problems associated with discrete LEDs.
- Package interlock ensures correct alignment
- Low profile package
- Rugged construction
- Large, easily recognizable segments
- High ON-OFF contrast, segment to segment
- Wide viewing angle
- Categorized for luminous intensity
- Operates at low current
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Red | ||
| 637 nm | ||
| 5.2 mcd | ||
| Tin-Silver-Copper | ||
| GaAlAs | ||
| 5.08x1.52x5.08 mm | ||
| Rectangular | ||
| 250 | ||
| 15 mA | ||
| 2.2 V | ||
| 37 mW | ||
| Through Hole | ||
| Top Mount | ||
| -20 to 100 °C | ||
| 20 | ||
| 645 nm | ||
| 20 | ||
| 25.4 x 10.16 x 5.08 mm | ||
| 5 V | ||
| Uni-Color |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8531200040 |
| Schedule B: | 8531200040 |
