HEDS-8902
Sensor Cable, Encoder, Molex KK Connector, Free End, 4 Positions, 152 mm, 5.98 ""
Click image to enlarge
Manufacturer:Broadcom
Product Category:
Sensors & Transducers, Sensor Accessories
Avnet Manufacturer Part #: HEDS-8902
Secondary Manufacturer Part#: HEDS-8902
-
RoHS 10 Compliant -
Tariff Charges

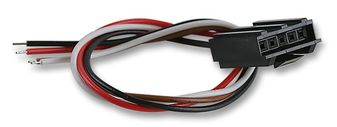

The HEDS-8902 is a 2-channel sensor cable with locking connector at one end and 4 flying leads at the other end.
- 3-channel differential output (A,B) with ungated, gated- 90 ° and gated-180 ° index pulse (I)
- 2-channel differential output available
- Up to 500 Cycles Per Revolution (CPR)
- Up to 30000 rpm motor speed
- -40 °C to 100 °C operating temperature
- Single 5 V supply
- Integrated RS-422 line driver
- Quick and easy assembly
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Wire Assembly | ||
| HEDx-5xxx Series Optical Encoder |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8543709700 |
| Schedule B: | 8543709665 |
Factory Lead Time:
