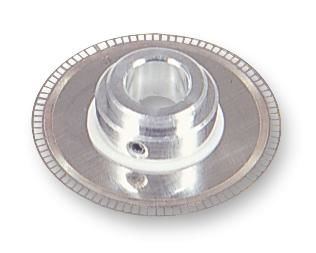

HEDS-5120-A11
Two and Three Channel Codewheels
Click image to enlarge
Manufacturer:Broadcom
Product Category:
Sensors & Transducers, Sensor Accessories
Avnet Manufacturer Part #: HEDS-5120-A11
Secondary Manufacturer Part#: HEDS-5120#A11
-
RoHS 10 Compliant -
Tariff Charges
The HEDS-5120#A11 is a 2-channel Code Wheel features 4mm shaft and 500CPR (cycles/revolution) resolution. This code wheel gives two outputs in quadrature. Suitable for use with HEDS-9000, HEDS-9100, HEDS-9040 and HEDS-9140 series optical encoder modules.
- Codewheels Available in Glass, Film, and Metal
- Available in Two Standard Diameters
- Cost Effective
- Resolutions from 96 CPR to 2048 CPR
- For Use with HEDS-90XX/91XX Series Two and Three
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Codewheel | ||
| HEDS-910x Series Optical Encoder Module |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8543709700 |
| Schedule B: | 8543709665 |
Factory Lead Time:
