HDSM-293B
Displays Segmented Panel 2DIGIT 18LED Blue CC 11-Pin SMD T/R
Click image to enlarge
Manufacturer:Broadcom
Product Category:
Displays, LED Displays, Segment LED Displays
Avnet Manufacturer Part #: HDSM-293B
Secondary Manufacturer Part#: HDSM-293B
-
RoHS 10 Compliant -
Tariff Charges

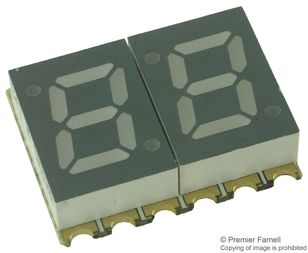

HDSM-293B is 0.28 inch (7.0mm) height dual digit display. This device utilizes InGaN/SiC blue LED chips. This device comes with gray top surface and white segments.
- 0.28” digit height
- Low current operation
- Excellent characters appearance
- Available in CA and CC
- 1000 pieces per reel
- Moisture Sensitivity Level: Level 3
- RoHS compliant
- Common Cathode, Upper and Lower Decimal
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 470 nm | ||
| 6000 ucd | ||
| Matte Tin | ||
| 260 | ||
| 25 mA | ||
| Surface Mount | ||
| MSL 3 - 168 hours | ||
| -40 to 105 °C | ||
| 11SMD | ||
| 462 nm | ||
| 11 | ||
| 15.1 x 12 x 3.75 mm | ||
| SMD | ||
| 3.15 mm | ||
| 7 mm | ||
| 4.6 mm |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8541410000 |
| Schedule B: | 8541410000 |
Factory Lead Time:
