AFBR-S10PS010Z
Optical Point Sensor, Self-Supervision, Miniature Connector, -40 °C to 85 °C

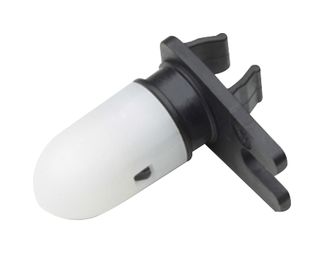

Click image to enlarge
Manufacturer:Broadcom
Product Category:
Sensors & Transducers, Optical Sensors, Photoelectric Sensors
Avnet Manufacturer Part #: AFBR-S10PS010Z
Secondary Manufacturer Part#: AFBR-S10PS010Z
-
RoHS 10 Compliant -
Tariff Charges
AFBR-S10PS010Z is an optical point sensor with self-supervision functionality. The light that meets the point sensor is captured and fed into a plastic optical fibre (POF). The self-supervision functionality is achieved by an in-built coupling between two fibres. It is used in applications such as arc flash event detection, light detection.
- Light capturing through the translucent head of the point sensor
- Optical link self-supervision supported (heartbeat signal)
- UL flammability UL94HB, good chemical resistance
- Acceptance cone exceeds 180° spherical with high homogeneity
- Suitable for 1.0/2.2-mm diameter duplex plastic optical fibre (POF)
- Insertion loss is 13dB typical
- Operating temperature range from -40 to +85°C
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Miniature Connector | ||
| 85 °C | ||
| -40 °C | ||
| Self-Supervision | ||
| Optical Point Sensor |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8517620090 |
| Schedule B: | 8517620010 |
Factory Lead Time:
