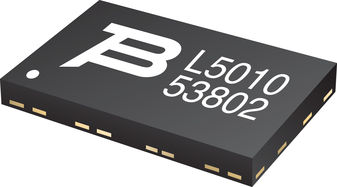

TBU-PL085-100-WH
High Speed Surge Protector IC, 2 Pole, 425 V, PCB - Surface Mount
-
RoHS 10 Compliant -
Tariff Charges
The TBU-PL Series of TBU products are low capacitance dual bidirectional high-speed protection components, constructed using MOSFET semiconductor technology, and designed to protect against faults caused by short circuits, AC power cross, induction and lightning surges.The TBU high-speed protector placed in the system circuit will monitor the current with the MOSFET detection circuit triggering to provide an effective barrier behind which sensitive electronics will not be exposed to large voltages or currents during surge events. The TBU device is provided in a surface mount DFN package and meets industry standard requirements such as RoHS and Pb Free solder reflow profiles.
- Superior circuit protection
- Overcurrent & overvoltage protection
- Blocks surges up to rated limits
- High-speed performance
- Small SMT package
- RoHS compliant
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 425 V | ||
| 2 Pole | ||
| 0.95 mm | ||
| 6.5 mm | ||
| TBU-PL Series | ||
| PCB - Surface Mount | ||
| High Speed Surge Protector IC |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8541590080 |
| Schedule B: | 8541590080 |
Factory Lead Time:
