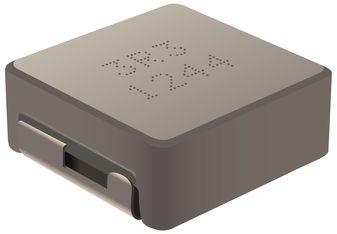

SRP1770TA-560M
Power Inductor (SMD), 56 uH, ± 20%, 7.8 A, Shielded, 15 A, 17.6mm x 16.9mm x 6.7mm
Click image to enlarge
Manufacturer:Bourns
Product Category:
Inductors, Power Inductors, SMD Power Inductors
Avnet Manufacturer Part #: SRP1770TA-560M
Secondary Manufacturer Part#: 81Y1956
-
RoHS 10 Compliant -
Tariff Charges
The SRP1770TA series from Bourns are automotive grade wire wound shielded SMD power inductors.
- Automotive grade AEC-Q200 qualified
- Dimension of 17.3mm (L) x 16.9mm (W) x 6.7mm (H)
- Inductance value range from 1µH to 100µH
- Current value (Irms) range from 5.3A to 52A
- Saturation current Isat1 and Isat 2 range from 6.5A to 60A and 12A to 70A
- DCR value range from 1.6mohm to 118mohm
- Carbonyl powder core, enamelled copper wire
- Tin(Sn) finish terminal
- High saturation current
- Operating temperature range from -40°C to 150°C
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Carbonyl Powder | ||
| 0.062 Ohm | ||
| 56 uH | ||
| ±20% | ||
| 6767 | ||
| Shielded | ||
| 6.7 mm | ||
| 16.9 mm | ||
| SRP1770TA Series | ||
| 16.9 mm | ||
| 7.8 A | ||
| 15 A |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8504504000 |
| Schedule B: | 8504500000 |
Factory Lead Time:
