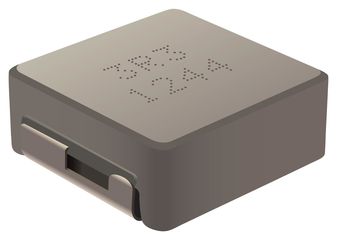

SRP1770TA-101M
Power Inductor (SMD), 100 µH, 5.3 A, Shielded, 12 A, SRP1770TA Series
Click image to enlarge
Manufacturer:Bourns
Product Category:
Inductors, Power Inductors, SMD Power Inductors
Avnet Manufacturer Part #: SRP1770TA-101M
Secondary Manufacturer Part#: SRP1770TA-101M
-
RoHS 10 Compliant -
Tariff Charges
The SRP1770TA series from Bourns are automotive grade wire wound shielded SMD power inductors.
- Automotive grade AEC-Q200 qualified
- Dimension of 17.3mm (L) x 16.9mm (W) x 6.7mm (H)
- Inductance value range from 1µH to 100µH
- Current value (Irms) range from 5.3A to 52A
- Saturation current Isat1 and Isat 2 range from 6.5A to 60A and 12A to 70A
- DCR value range from 1.6mohm to 118mohm
- Carbonyl powder core, enamelled copper wire
- Tin(Sn) finish terminal
- High saturation current
- Operating temperature range from -40°C to 150°C
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Carbonyl Powder | ||
| 0.118 Ohm | ||
| 100 µH | ||
| 20 | ||
| 6767 | ||
| Shielded | ||
| 6.45 mm | ||
| 16.9 mm | ||
| SRP1770TA Series | ||
| 16.9 mm | ||
| 5.3 A | ||
| 12 A |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8504504000 |
| Schedule B: | 8504500000 |
Ships
in 1 bus. day
