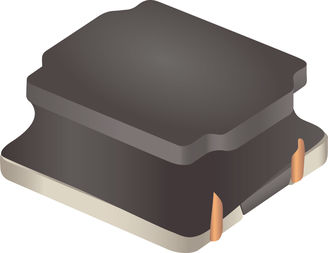

SRN3015TA-150M
Power Inductor (SMD), 15 uH, ± 20%, 700 mA, Semishielded, 650 mA, 3mm x 3mm x 1.5mm
Click image to enlarge
Manufacturer:Bourns
Product Category:
Inductors, Power Inductors, SMD Power Inductors
Avnet Manufacturer Part #: SRN3015TA-150M
Secondary Manufacturer Part#: SRN3015TA-150M
-
RoHS 10 Compliant -
Tariff Charges
The SRN3015TA-150M from Bourns is a SRN3015TA series SMD semi shielded power inductor. It is typically used in applications such as driver assistant, infotainment, lighting DC to DC converters, power supplies, digital video cameras, HDDs, smartphones, televisions and LCD displays.
- Automotive grade AEC-Q200 qualified
- Inductance is 15µH at 100KHz/0.1V
- Tolerance is ±20%
- DCR (DC resistance of inductor) is 0.32ohm (±20%)
- RMS current (Irms) is 0.7A
- Saturation current (Isat) is 0.65A
- Ferrite core, enamelled copper wire and Sn terminal finish
- Operating temperature range from -40°C to 125°C
- Dimension is 3mm x 3mm x 1.5mm
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Ferrite | ||
| 0.32 Ohm | ||
| 15 uH | ||
| ±20% | ||
| 1212 | ||
| Semishielded | ||
| 1.5 mm | ||
| 3 mm | ||
| SRN3015TA Series | ||
| 3 mm | ||
| 700 mA | ||
| 650 mA |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8504504000 |
| Schedule B: | 8504500000 |
Factory Lead Time:
