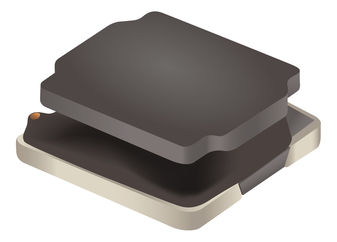

SRN3012TA-1R0Y
Power Inductor (SMD), AEC-Q200, 1 µH, 2 A, Semishielded, 2.15 A, SRN3012TA Series
Click image to enlarge
Manufacturer:Bourns
Product Category:
Inductors, Power Inductors, SMD Power Inductors
Avnet Manufacturer Part #: SRN3012TA-1R0Y
Secondary Manufacturer Part#: SRN3012TA-1R0Y
-
RoHS 10 Compliant -
Tariff Charges
The SRN3012TA-1R0Y from Bourns is a SRN3012TA series SMD semi shielded power inductor. It is typically used in applications such as driver assistant, infotainment, lighting DC to DC converters, power supplies, digital video cameras, HDDs, smartphones, televisions and LCD displays.
- Automotive grade AEC-Q200 qualified
- Inductance is 1µH at 1MHz/0.1V
- Tolerance is ±30%
- DCR (DC resistance of inductor) is 0.042ohm (±20%)
- RMS current (Irms) is 2A
- Saturation current (Isat) is 2.15A
- Ferrite core, enamelled copper wire and Sn terminal finish
- Operating temperature range from -40°C to 125°C
- Dimension is 3mm x 3mm x 1.2mm
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Ferrite | ||
| 0.042 Ohm | ||
| 1 uH | ||
| ±30% | ||
| 1212 | ||
| Semishielded | ||
| 1.2 mm | ||
| 3 mm | ||
| SRN3012TA Series | ||
| 3 mm | ||
| 2 A | ||
| 2.15 A |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8504504000 |
| Schedule B: | 8504500000 |
Factory Lead Time:
