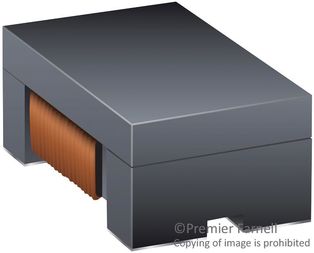

SRF4532-510Y
Inductor, Chip, Common Mode, 51 µH, SRF4532 Series, 2 kohm, 200 mA, 4.5mm x 3.2mm x 2.8mm
Click image to enlarge
Manufacturer:Bourns
Product Category:
Inductors, SMD Common Mode Chokes
Avnet Manufacturer Part #: SRF4532-510Y
Secondary Manufacturer Part#: SRF4532-510Y
-
RoHS 10 Compliant -
Tariff Charges
The SRF4532-510Y from Bourns is a SRF4532 series common mode chip inductor. It provides EMI suppression for data and signal lines, CAN bus, telecom devices and consumer electronics.
- Common mode inductance is 51µH at 100KHz
- Tolerance is +50%/-30%
- High common mode impedance is 2000 ohm(typ) at 10MHz
- Maximum DCR is 3.5ohm
- Maximum IDC is 200mA
- Rated voltage is 50VDC
- Withstand voltage is 125VDC
- Minimum insulation resistance is 10Mohm at 100VDC
- Ferrite core, enamelled core wire, tin terminal
- Operating temperature range from -40°C to +125°C
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 200 mA | ||
| 2 kOhm | ||
| 51 uH | ||
| SMD | ||
| 2.8 mm | ||
| 4.5 mm | ||
| SRF4532 Series | ||
| 3.2 mm |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8533210030 |
| Schedule B: | 8533210045 |
