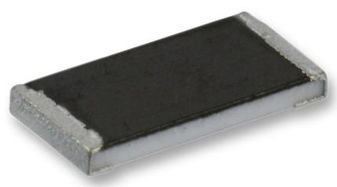

CHV2010-FX-2203ELF
SMD Chip Resistor, 220 kOhm, ± 1%, 500 mW, 2010 [5025 Metric], Thick Film, High Voltage
Click image to enlarge
Manufacturer:Bourns
Product Category:
Resistors, Surface Mount Resistors
Avnet Manufacturer Part #: CHV2010-FX-2203ELF
Secondary Manufacturer Part#: CHV2010-FX-2203ELF
-
RoHS 10 Compliant -
Tariff Charges
The CHV series from Bourns are thick film high voltage chip resistors. The resistance range includes E24 and E96 decade values from 100K to 100MGohm with 1% and 5% tolerance. Typical applications include high voltage applications and consumer electronics.
- Temperature coefficient is ±100ppm/°C (1%), ±200ppm/°C (5%)
- Maximum operating voltage up to 3KV, power rating up to 1W at 70°C
- Operating temperature range from -55°C to +155°C
- Approved by UL1676 E466353 standards
- UL/IEC 60950 and 60065 compatible
- High voltage resistor
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| MSL 1 - Unlimited | ||
| 155 °C | ||
| -55 °C | ||
| 0.5 mW | ||
| 5 mm | ||
| CHV Series | ||
| 2.5 mm | ||
| 220 kOhm | ||
| 1 | ||
| 2010 | ||
| Thick Film | ||
| Thick Film | ||
| 100.0000 ppm/°C | ||
| 3 kV |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8533210020 |
| Schedule B: | 8533210045 |
Factory Lead Time:
