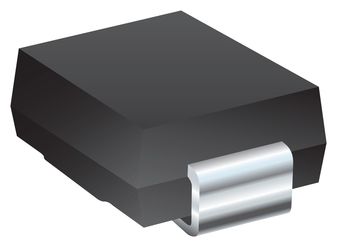

5.0SMDJ12A
Diode TVS Single Uni-Dir 12V 5000W 2-Pin DO-214AB T/R
Click image to enlarge
Manufacturer:Bourns
Product Category:
Circuit Protection, TVS - Transient Voltage Suppressors, TVS Diodes
Avnet Manufacturer Part #: 5.0SMDJ12A
Secondary Manufacturer Part#: 5.0SMDJ12A
-
RoHS 10 Compliant -
Tariff Charges
The 5.0SMDJ12A from Littelfuse is a 5000W, unidirectional, 5.0SMDJ series transient voltage suppression diode. It is constructed with glass passivated chip junction. It features excellent clamping capability, fast response time and low incremental surge resistance. The 5.0SMDJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
- Working peak reverse voltage VRWM is 12V
- Maximum breakdown voltage VBR is 14.7V at 1mA
- Maximum reverse leakage current is 2µA
- Maximum clamping voltage is 19.9V
- Peak pulse current is 252A
- Maximum instantaneous forward voltage is 5V at IPP = 100A
- Peak forward surge current is 300A
- Steady state power dissipation at TL = 50°C is 6.5W
- Operating temperature range from -55°C to +150°C
Technical Attributes
Find Similar Parts
| Description | Value |
|---|
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8541300080 |
| Schedule B: | 8541300080 |
