AES-XRF8-ZU47-G

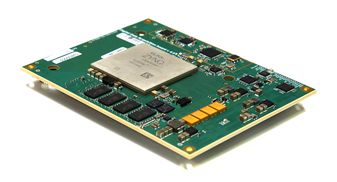

The Avnet XRF8™ RFSoC System-on-Module is designed for integration into deployed RF systems demanding small footprint, low power and real-time processing. The XRF8 features the AMD Xilinx Zynq® UltraScale+™ RFSoC Gen3 ZU47DR, with 8 RF-ADC, 8 RF-DAC channels and 6 GHz RF bandwidth. Modules can be ordered with the ZU48DR RFSoC to enable 8x soft-decision forward error correction (SD-FEC) units.

Combine the production-ready XRF8 module with the XRF8 Carrier Card and Avalon™ software suite to jump-start proof-of-concept and application development. Then deploy your system with the same XRF8 module used for proof-of-concept. Example code and tutorials demonstrate AMD Xilinx RFSoC multitile sync (multi-converter sync) and multi-board synchronized analog capture.

• AMD Xilinx Zynq UltraScale+ Gen3 ZU47DR RFSoC
  • 8x ADCs, 14-bit up to 5.0 GSPS
  • 8x DACs, 14-bit up to 8.92 GSPS (10 GSPS available)
  • Quad-core Arm® Cortex®-A53 processing subsystem
  • 1 GbE, PCIe Gen1/2, SATA, USB2/3
  • UltraScale+ programmable logic
• High-Speed Data Transfer
  • 16x ultra-fast AMD Xilinx GTY serial transceivers
  • Quad Mesh™ firmware combines AMD Xilinx Aurora protocol with GTY transceivers tostream data with four peers, facilitating tiling in high performance real-time systems
• Clocks & Synchronization
  • Ultra-low jitter programmable sampling clocks
  • External or onboard programmable TCXO reference clock
  • Phase coherent synchronous sampling across all converters & multiple boards
• Memory
  • 4GB DDR4 @ programmable Logic
  • 4GB DDR4 @ processor Subsystem
  • 32GB eMMC persistent storage
  • 128MB QSPI boot storage
