AES-XRF8-CC-G

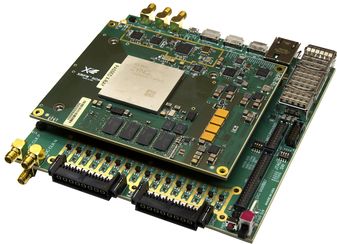

XRF8 Carrier Card

Avnet Manufacturer Part #: AES-XRF8-CC-G
Secondary Manufacturer Part#: AES-XRF8-CC-G
  • Legend Information Icon RoHS 10 Compliant
  • Legend Information Icon Tariff Charges

The XRF8 AMD Xilinx RFSoC System-on-Module (SOM) is designed for integration into your deployed system. The XRF8 Carrier Card and Avalon™ software suite provide a rapid prototype platform, enabling you to develop application code for the XRF8 SOM that is ready for deployment when your custom carrier arrives.

The XRF Carrier provides connection to standard SOM peripherals including USB2.0, 1 Gb Ethernet, PCIe, UART, SPI, I2C, GPIO, and JTAG. High-speed digital connectivity is available through sixteen AMD Xilinx GTY transceivers, enabling standards like PCIe over OCuLink and AMD Xilinx Aurora.

The SOM RF-ADC and RF-DAC ports are made available using Samtec IsoRate® connectors that easily convert to SMA with cable adapters. Synchronization is enabled by external reference clock connection, external in/out triggers, and software examples demonstrating RFSoC multi-tile sync (multi-converter sync) and multi-board synchronized analog capture.

  • RF interface & synchronization
    • 2x Samtec IsoRate® high density quick connect
    • Trigger In, Trigger Out, External Clock Reference (SMA)
  • High-speed data transfer
    • 16x ultra-fast AMD Xilinx GTY serial transceivers, connected as:
    • 1x QSFP28 (100GbE not supported)
    • 3x OCuLink
  • Peripheral
    • 1 GbE connector
    • Micro USB 2.0 for device connection
    • Micro USB for JTAG & UART
    • Micro USB for UART
    • JTAG debug header
    • 32 PL-GPIO at standard header pins
    • 16 PS-GPIO at standard header pins
  • System
    • Supply 12V power at 2.5mm center positive jack
    • 6.0” x 6.0” footprint
  • Kit includes
    • XRF8 carrier card
    • Avalon™ software

  • Target apps
    • Phased Array Radar
    • 5G Massive MIMO
    • Hybrid Beamforming
    • Signal Detection & Jamming
    • Medical Imaging
    • Multi-Cha

Technical Attributes

Find Similar Parts

Description Value

ECCN / UNSPSC / COO

Description Value
Country of Origin: NO RECOVERY FEE
ECCN: EAR99
HTSN: 8473301180
Schedule B: 8473300002
In Stock :  0
Additional inventory
Factory Lead Time: 84 Weeks
Price for: Each
Quantity:
Min:1  Mult:1
USD $:
1+
$4995.0
