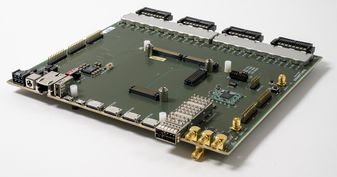

AES-XRF16-CC-G-D

The XRF16 AMD Xilinx RFSoC System-on-Module (SOM) is designed for
integration into your deployed system. The XRF16 Carrier Card and software
suite provide a rapid prototype platform, enabling you to develop application
code for the XRF16 SOM that is ready for deployment when your custom carrier
arrives.

The XRF16 Carrier provides connection to standard SOM peripherals including
USB2.0, 1 Gb Ethernet, PCIe, UART, SPI, I2C, GPIO, and JTAG. High-speed digital
connectivity is available through sixteen AMD Xilinx GTY transceivers, enabling
standards like PCIe over OCuLink and AMD Xilinx Aurora.

The SOM RF-ADC and RF-DAC ports are made available using Samtec IsoRate®
connectors that easily convert to SMA with cable adapters. Synchronization is
enabled by external reference clock connection, external in/out triggers, and
software examples demonstrating RFSoC multi-tile sync (multi-converter sync)
and multi-board synchronized analog capture
