TSX00083

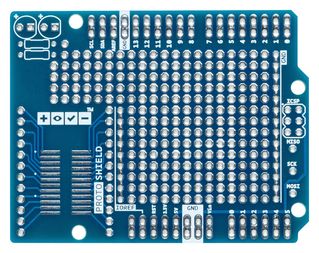

Development Board, Arduino Protoshield Rev 3, Soldered Prototyping Shield For Arduino
Click image to enlarge
Manufacturer:Arduino
Product Category:
Kits & Tools, Kits & Tools Accessories
Avnet Manufacturer Part #: TSX00083
Secondary Manufacturer Part#: TSX00083
-
RoHS 10 Compliant -
Tariff Charges
TSX00083 is a Proto Shield Rev3 (Uno Size) board makes it easy for you to design custom circuits. You can easily solder TH or SMD ICs on the prototyping area to test them with your Arduino board. The SMD area is designed for a maximum of 24 pins SOIC inte
- 1.0 Arduino pinout
- 1 ICSP connector footprint
- 2 LEDs and resistor footprint
- IOREF and GND power lines
- SPI signals pads
- 24 pin SMD footprint (50mils pitch)
Technical Attributes
Find Similar Parts
| Description | Value |
|---|
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | UNKNOWN |
| ECCN: | EAR99 |
| HTSN: | 8542900000 |
| Schedule B: | 8542900000 |
Factory Lead Time:
