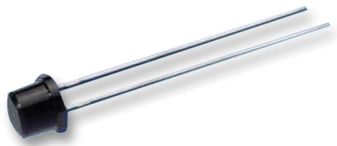

SFH 203 PFA
Photodiode PIN Chip 900nm 0.59A/W Sensitivity 2-Pin T-1 3/4
Click image to enlarge
Manufacturer:ams OSRAM
Product Category:
Optoelectronics, Infrared - IR Components, Photodiodes
Avnet Manufacturer Part #: SFH 203 PFA
Secondary Manufacturer Part#: Q62702P0947
-
RoHS 10 Compliant -
Tariff Charges
The SFH203PFA is a Silicon PIN Photodiode mounted in a 5mm plastic package.
- 1 x 1mm² Radiant sensitive area
- ±75° Half angle
- Daylight filter
- Wavelength range (S10%) 750 to 1100nm
- Short switching time (typical 5ns)
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Matte Tin | ||
| 260 | ||
| 10 nA | ||
| 5 ns | ||
| 1 to 15 ns | ||
| 5 ns | ||
| 1 to 15 ns | ||
| Through Hole | ||
| -40 to 100 °C | ||
| 2T-1 3/4 | ||
| 0.59 A/W | ||
| Si | ||
| 2 | ||
| 5.9 x 5.9 x 5 mm | ||
| T-1 3/4 | ||
| Chip | ||
| 900 nm |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8541410000 |
| Schedule B: | 8541410000 |
Factory Lead Time:
