KW CSLPM2.PC-5N7N-4F8G-0-700-S
LED Chip Cool White 5700K 1800mA 2-Pin CSMD T/R
Click image to enlarge
Manufacturer:ams OSRAM
Product Category:
Optoelectronics, LEDs & Lighting, LEDs
Avnet Manufacturer Part #: KW CSLPM2.PC-5N7N-4F8G-0-700-S
Secondary Manufacturer Part#: Q65112A3721
-
RoHS 10 Compliant -
Tariff Charges

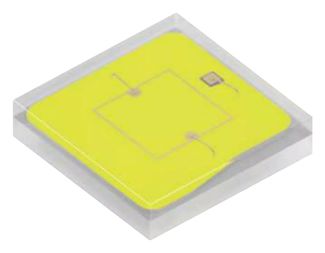

KW CSLPM2.PC-5N7N-4F8G-0-700-S is a compact 3 x 3mm high-power LED with an electrically isolated thermal pad that allows for superior heat dissipation designs. The flat package shape enhances colour homogeneity due to reduced colour-over-angle variation. Extremely low thermal resistance helps to maintain the efficiency remarkably high even when driven at higher currents. It is ideal for entertainment and transportation.
- Typical radiation is 120° (lambertian emitter)
- Ceramic package, UX:3 chip technology
- Corrosion robustness class: 2B
- Colour rendering index (CRI) is 70 (typical)
- ESD: 8KV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, class 3B)
- Operating temperature range from -40°C to 125°C
- Forward current is 1800mA maximum (TS = 25°C), reverse current is 200mA maximum
- Forward voltage is 2.85V typical (IF = 700mA), reverse voltage is 1.2V maximum (IR = 20mA)
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Cool White | ||
| 70 | ||
| 5700 K | ||
| 125 cd | ||
| Matte Tin | ||
| 400 lm | ||
| 260 °C | ||
| 1800 mA | ||
| 3.2 V | ||
| Surface Mount | ||
| Top Mount | ||
| 2 | ||
| -40 to 125 °C | ||
| 2CSMD | ||
| 2 | ||
| 3 x 3 x 0.76 mm | ||
| 1.2 V | ||
| Extended Industrial | ||
| KW CSLPM2.PC | ||
| CSMD | ||
| Chip LED | ||
| 120 ° |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8541410000 |
| Schedule B: | 8541410000 |
