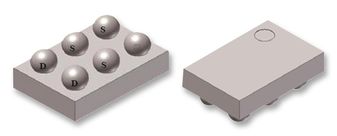

AS5510-DWLM

AS5510 is a linear hall sensor with 10bit high resolution and I²C interface. It can measure the absolute position of lateral movement of a simple 2-pole magnet. Depending on the magnet size, a lateral stroke of 0.5 to 2mm can be measured with air gaps around 1.0mm. To conserve power, it may be switched to a power-down state when it is not used. Application includes position sensing, servo drive feedback, camera lens control, and closed-loop position control.

• Highest reliability and durability, contactless position measurement
• Ideal for battery powered devices, power down mode
• Easy to use, simple configuration over the I2C interface
• Operates in wide magnetic range, programmable sensitivity
• Typical magnetic input range is ±50mT (default setting)
• Maximum system propagation delay is 20µs (after offset compensation finished)
• Smallest form factor, 6 pin WLCSP package
• Ambient temperature range from -30 to 85°C
• 2.5V to 3.6V supply voltage at pin VDD
