AS5145B-HSST

Name: AS5145B-HSST
Brand: ams OSRAM
SKU: AS5145B-HSST
Availability: InStock

Angular Type Position Sensor 3V to 3.6/4.5V to 5.5V 16-Pin SSOP T/R

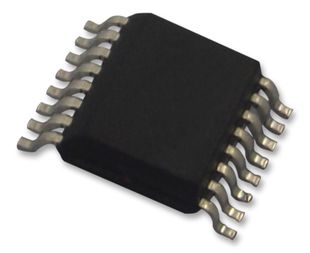

Click image to enlarge

Manufacturer:ams OSRAM

Product Category: Sensors & Transducers, Magnetic Sensors, Hall Effect Sensors

Avnet Manufacturer Part #: AS5145B-HSST

Secondary Manufacturer Part#: Q65114A0597

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	No. of Pins	16
	Operating Temperature Max	150 °C
	Operating Temperature Min	-40 °C
	Product Range	AS5145 Series
	Qualification	AEC-Q100
	Sensor Case / Package	SSOP
	Sensor Type	Angular
	Supply Voltage Max	5.5
	Supply Voltage Min	4.5

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	RECOVERY FEE
ECCN:	EAR99
HTSN:	8542390050
Schedule B:	8542390060

In Stock : 0

Additional inventory

Factory Lead Time: 161 Weeks

Price for: Each

Quantity:

Min:2000 Mult:2000

USD $:

2000+

$5.0764

4000+

$5.0505

8000+

$5.0246

12000+

$4.9987

16000+

$4.9728
