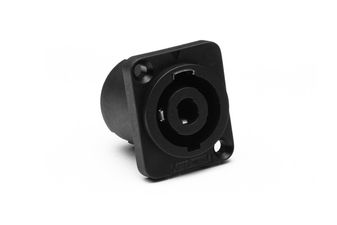

SP-4-MD

The SP-4-MD from Amphenol is a SP series 4 pole loud speaker chassis mount connector with solder tabs 3/16” termination. Completely intermateable with industry standard loudspeaker connections.

• Black colour 'D' type flange shell, through hole mounting
• Quick release, vibration resistant latch lock
• UL, cUL recognized components (file number E339831)
• Precision machined contacts
• Phosphor bronze with silver plated contacts
• Test voltage AC RMS is 1500V, current carrying capacity is 20A
• Typical contact resistance is = 3mohm, insulation resistance (initial) is =2Gohm
• Operating temperature range from -25°C to +75°C (-13°F to +167°F), flammability rating is UL94HB
• PA66 GF20 insulator
