L77SDE09S

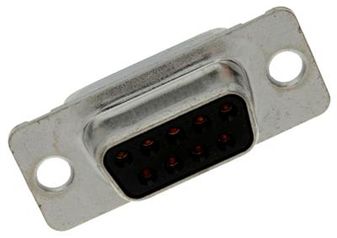

D Sub Connector, Standard, Receptacle, SD Series, 9 Contacts, DE, Solder Cup
Click image to enlarge
Manufacturer:Amphenol
Product Category:
Connectors, D-Shaped Connectors, Standard D-Sub Connectors
Avnet Manufacturer Part #: L77SDE09S
Secondary Manufacturer Part#: L77SDE09S
-
RoHS 10 Compliant -
Tariff Charges
The L77SDE09S is a 9-position standard density D-sub Connector, Receptacle, SD series, solder cup termination, gold-plated tinned DE-size shell for receptacle. UL94V-0 glass-filled thermoplastic insulator. The D-sub connector features precision formed contacts and insulator with closed entry contacts cavities. This series gives high standard of quality and reliability to meet all of commercial requirements.
- Gold-plated phosphor bronze socket contact
- Nickel-plated brass rear insert, boardlock and screwlock
- 3A current rating
- 1000MΩ at 500VDC insulation resistance
- 20mΩ maximum contact resistance
- Operating temperature range from -55 to +125°C
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Thermoplastic | ||
| Straight | ||
| Bronze | ||
| Gold | ||
| Receptacle | ||
| Tin | ||
| Panel Mount | ||
| -55 to 105 °C | ||
| 15.65 mm | ||
| 30.89 x 15.65 x 12.55 mm | ||
| 12.55 mm | ||
| 30.89 mm | ||
| Solder Cup |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694030 |
| Schedule B: | 8536694040 |
Factory Lead Time:
